ChemGrout CG-500/031 High-Capacity Geothermal Series

-High-Capacity Geothermal Series has been designed specifically for grouting geothermal loops.

-Skid mounted grout plants efficiently mix and pump the high ratio sand/bentonite materials specified by loop designers.

-The CG-500/031 feature two 70-gallon (265 liters) mixing tanks equipped with baffles, bag breaker and a variable speed high-efficiency paddle mixer that provides rapid grout mixing. Tank outlets are large slide gates that allow viscous grouting materials to flow quickly into the removable holding hopper.

-Large 45-gallon (170 liter) holding hopper.

-Popular 3″ positive displacement, single acting piston pump capable of delivering up to 400psi/20gpm air operated or 550psi/16gpm hydraulic operated. Pump disassembles with only a hammer for fast and thorough cleaning.

The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.

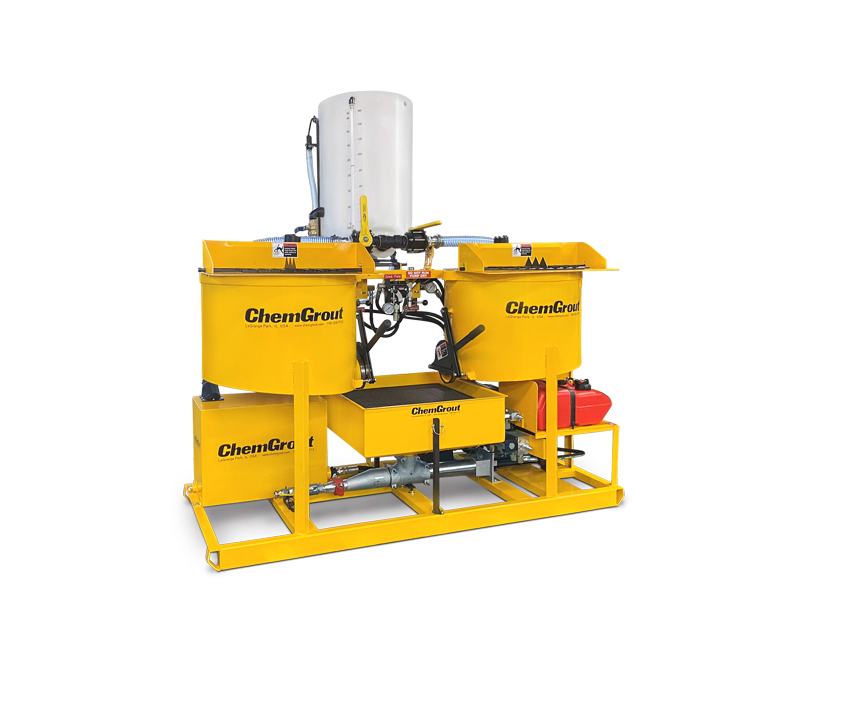

****Shown with optional water batcher****
