CG-600 High Pressure Colloidal Series

-The ChemGrout CG-600 High Pressure series are skid mounted, colloidal grout plants.

-The 13 cubic foot colloidal mixer is equipped with a high shear centrifugal diffuser-type pump that disperses the cementitous material down to its finest particle size to achieve complete particle wetness. The mixing tank is equipped with a bridge breaker to break apart the material before entering the colloidal mixer. The agitated storage tank is available in 13 CF or 17 CF and equipped with a variable speed high-efficiency paddle mixer that maintains a thoroughly mixed grout while waiting to be pumped.

-The grout pump is connected directly to the agitated storage tank to provide a continuous pumping operation. The grout pump is a double acting, positive displacement plunger style that is available in three different sizes, 3X8 and 2X8, offering discharge pressures of 1,000 psi and 2,000 psi respectively. The double-acting plunger pump is designed so that conversion between the pressure outputs is easy and cost effective.

-Operator controls are centrally located for efficient production.

-The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance.

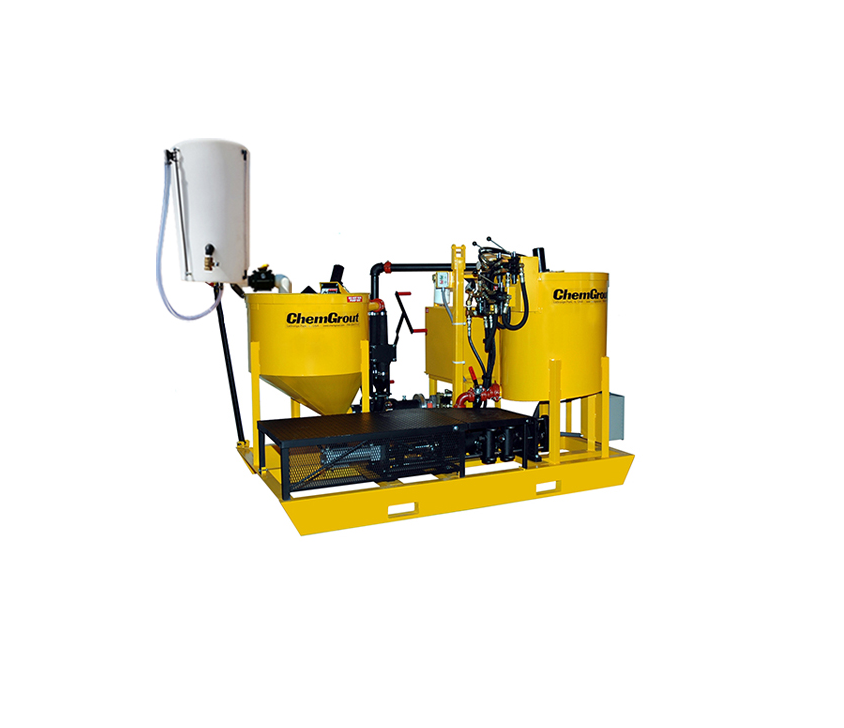

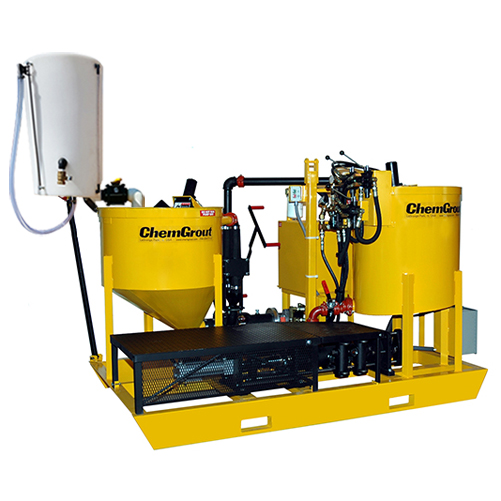

**Shown with optional water batcher.
