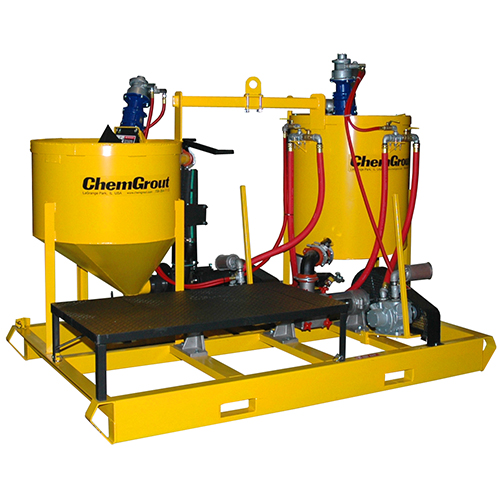

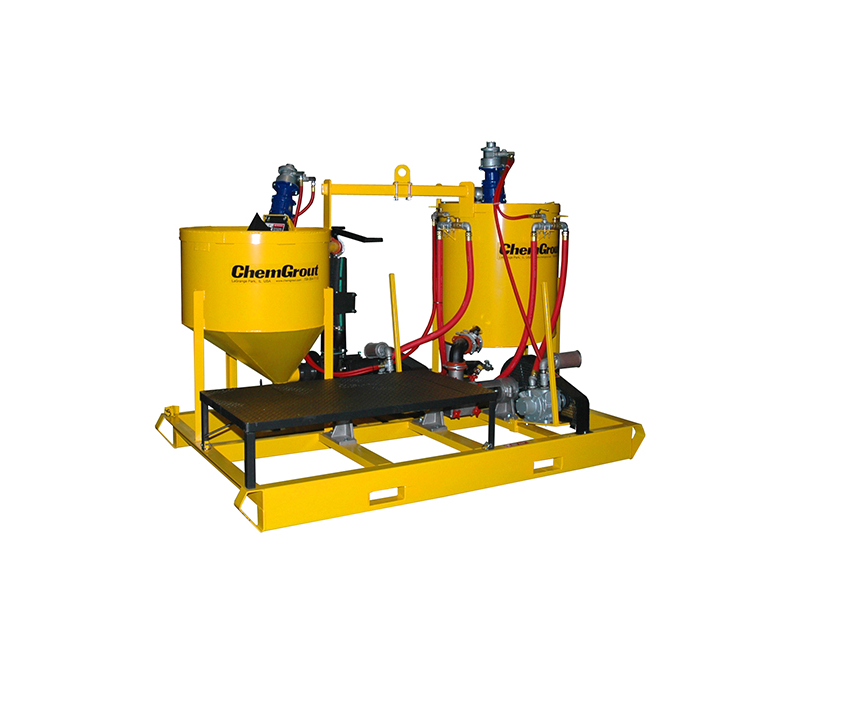

CG-600 Colloidal Series

·       -Heavy duty, high volume colloidal mixing grout plants for applications that require colloidal mixing like dams, tunnels, post-tensioning, underground mining and many heavy construction jobs.

·       -The Chem-Grout colloidal series easily mixes and pumps slurries of neat cement, fly ash, bentonite, microfine cements and lime flour.

·      - The colloidal mixer is equipped with a centrifugal diffuser-type pump rotating at speeds up to 2000 RPM that disperses the cementitious material down to its finest particle size to achieve complete particle wetness. Available with an 8 cubic foot (220 Liters) or 13 cubic foot (368 L) colloidal mixer, both are designed to provide a continuous mixing and pumping operation.

·    -   The mixing tank is also equipped with a bridge breaker to break apart the material before entering the colloidal mix pump.

·      - 13 cubic foot agitated storage tank (17 CF optional) is equipped with a variable speed high-efficiency paddle mixer that maintains a thoroughly mixed grout while waiting to be pumped.

·       -20 GPM progressing cavity grout pump progressing cavity, positive displacement, rotor-stator pump is connected directly to the agitated storage tank to provide a continuous pumping operation.

·       -The rugged steel frame stands up to the toughest conditions on the job site.

·      -Operator controls are centrally located for efficient production.

·       -All components are easily accessible for operating, cleaning and maintenance.
