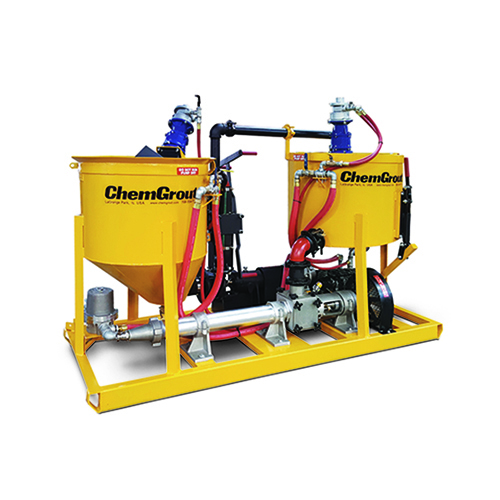

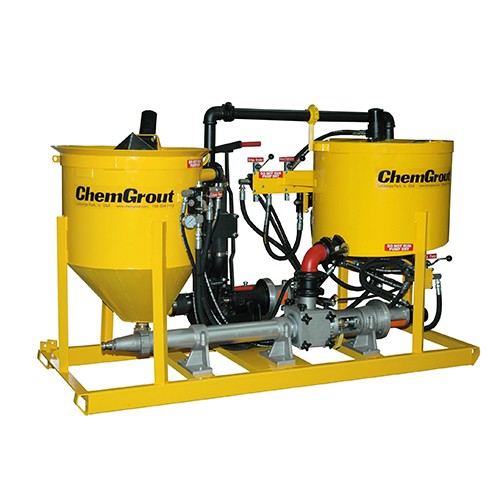

CG-600/8CF Compact Colloidal Series

-Compact, medium duty, colloidal grout plant for applications that require colloidal mixing like post-tensioning, underground and heavy construction jobs.

-The colloidal mixer easily mixes slurries of cement, fly ash, bentonite, microfine cements and other fine-grained materials.

-This compact grout plant is designed to provide a simultaneous mixing and pumping operation.

-The colloidal mixer is equipped with a high shear, diffuser-type pump rotating at speeds up to 2000 RPM that disperses the dry material down to its finest particle size to achieve complete particle wetness.

-The 8 cubic foot mixing tank is also equipped with a powered bridge breaker to assist induction of dry materials into the colloidal mixer.

-9 or 13 cubic foot variable speed, high efficiency, agitated holding tank which maintains uniform consistency in preparation for pumping.

-20 GPM closed inlet grout pump size 6, 3 stage progressing cavity, positive displacement, rotor-stator pump. The closed inlet pump prevents air entrainment in the grout mix and meets the specification for PT grouting.  An optional open throat hopper version allows for a final quality control check and convenient sampling prior to pumping.

-The rugged steel frame stands up to the toughest conditions on the job site.

-Operator controls are centrally located for efficient production. All components are easily accessible for operating, cleaning and maintenance.
