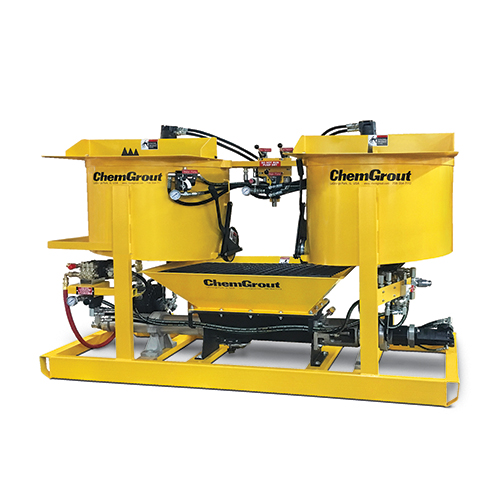

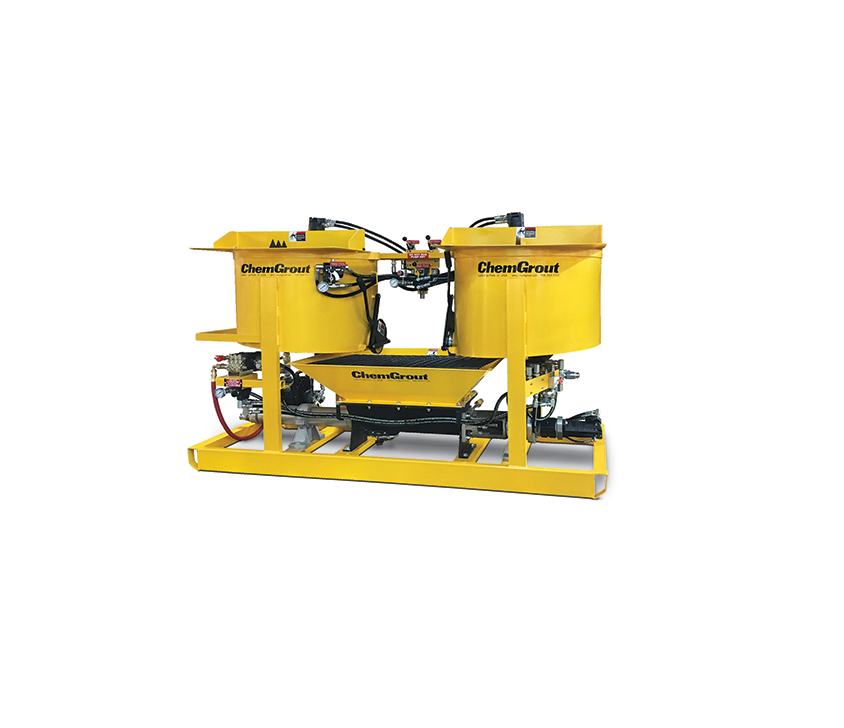

CG-580 High Capacity Series

-High production volume skid mounted grout plants.

-This versatile unit is designed to mix and pump neat cement, sanded grouts and most commercial pre-blended grout mixes.

-Feature two 128-gallon (480 liters) double mix tank design permits continuous pumping as each mix tank alternates feeding the pump. Each mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper.

-70-gallon (265 L) holding hopper has an auger in it to keep the material thoroughly mixed while constantly supplying the grout pump with material for the continuous pumping operation.

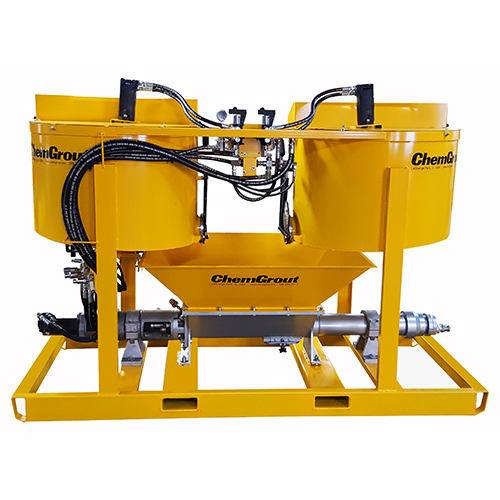

-Open throat size 8, 2 or 3 stage variable speed, positive displacement, progressive cavity, rotor-stator pump.

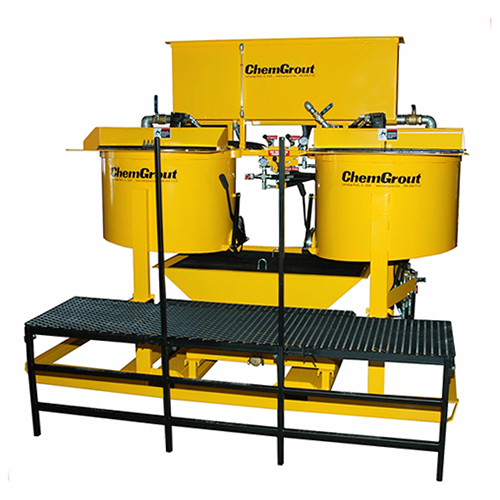

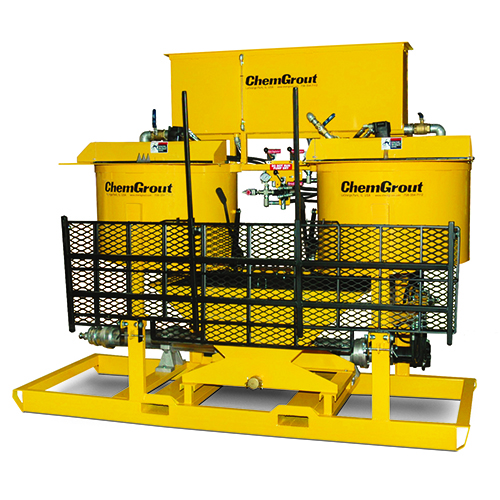

-The rugged steel frame includes the worker platform and stands up to the toughest conditions on the job site.

 -Operator controls are centrally located for efficient production.

-All components are easily accessible for operating, cleaning, and maintenance.
