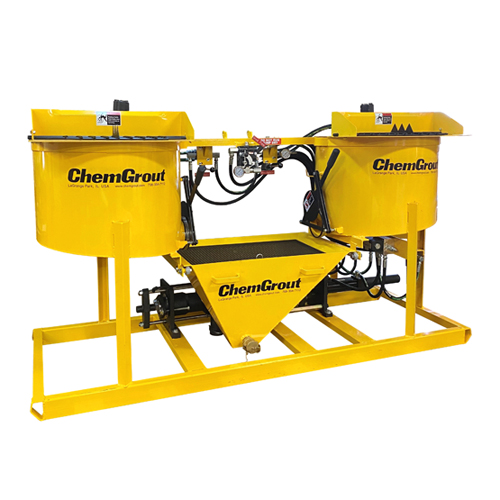

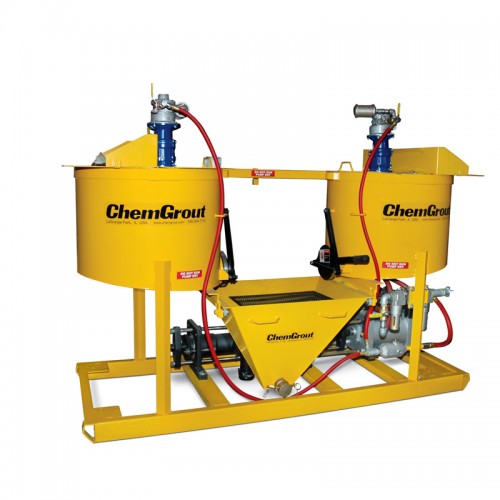

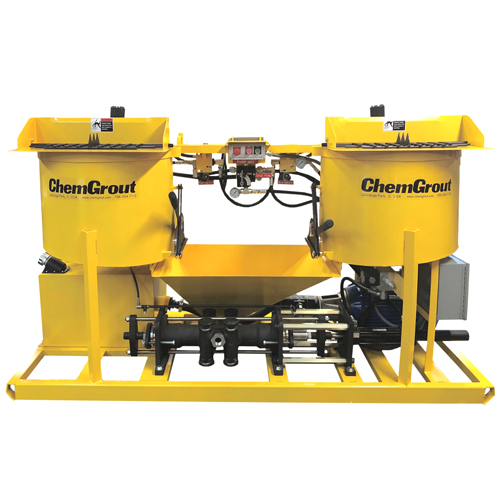

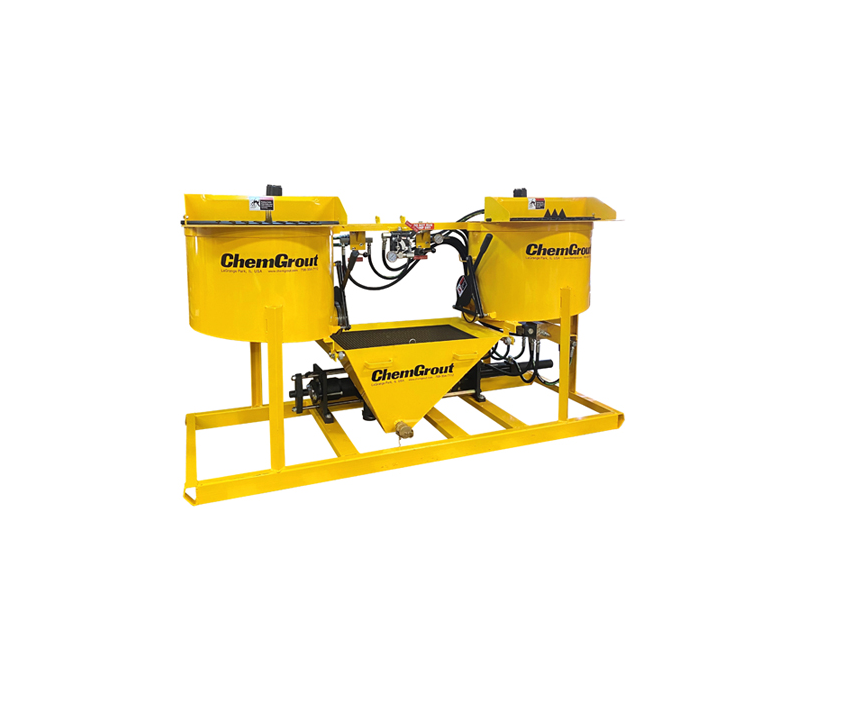

CG-500 High Pressure series

-Skid mounted, high-pressure grout plants

-The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.

-70-gallon (265 liters) mixing tanks equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlets are large slide gates that allow viscous grouting materials to flow quickly into the removable holding hopper.

-21-gallon (80 liters) holding hopper.

-Positive displacement, double acting pump that delivers up to 16GPM and 2,000PSI in a 2” plunger or 24 GPM and 1,000 PSI in a 3” plunger. Can be converted between 2” and 3” plungers with an additional kit. The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance.

Operator controls are centrally located for efficient production.

Shown with optional water batcher.
