CG-460 High Pressure Colloidal Series

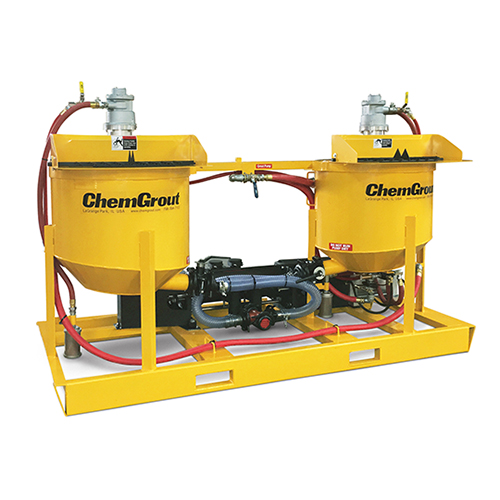

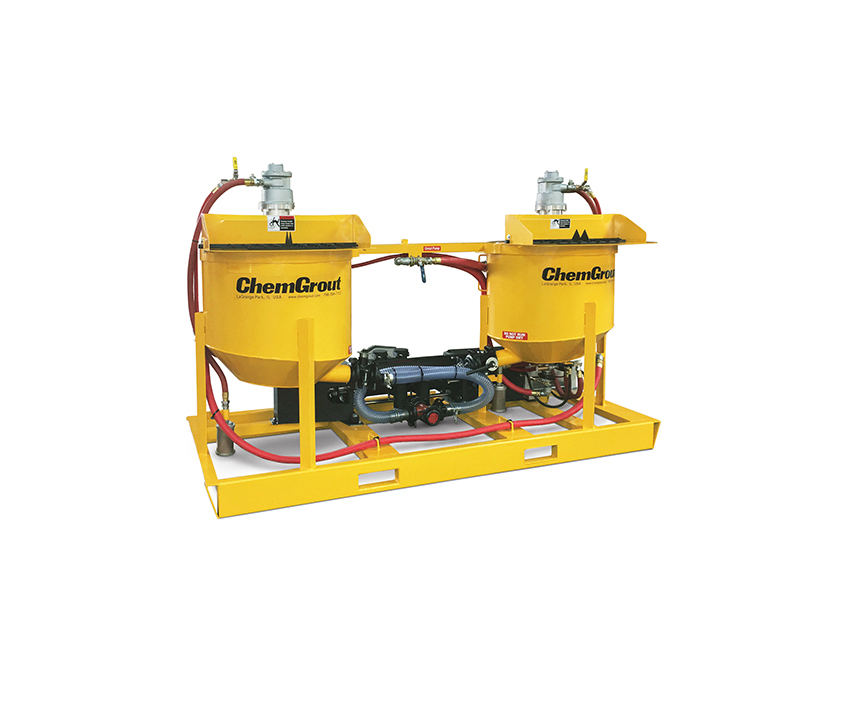

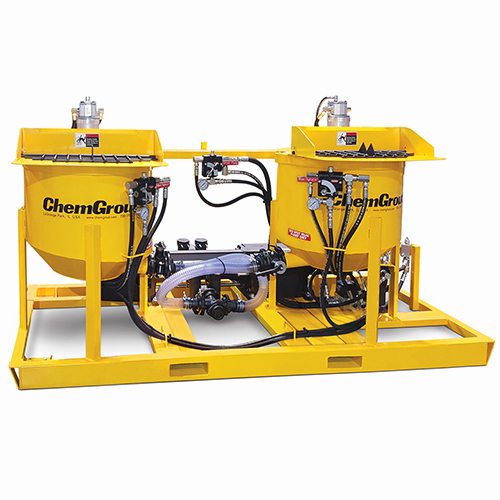

-The versatile Chem-Grout model CG460/2X8 is a skid mounted, high-pressure grout plant that is designed to mix and pump neat cements at high-pressures.

-Dual 55 gallon (208L) colloidal mix tanks allow for independent mixing of flushing and structural grouts.  Each mixer is equipped with variable speed, high-efficiency, high shear disks, rotating at speeds up to 3,000 rpm that provides rapid and thorough mixing. The tank outlet valves are a large 4” butterfly type that assures full material flow into pump suction.

-The grout pump is a double acting, positive displacement plunger style that will deliver 15 GPM (57 l/m), 2000 PSI (138 BAR).
