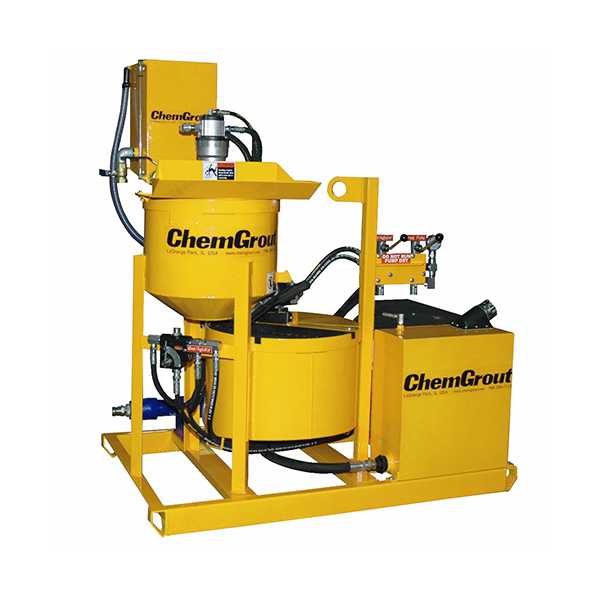

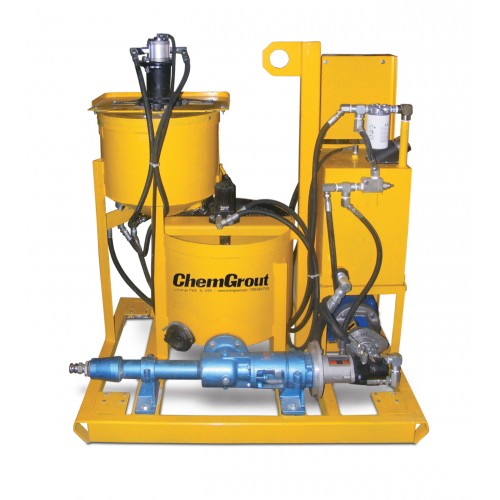

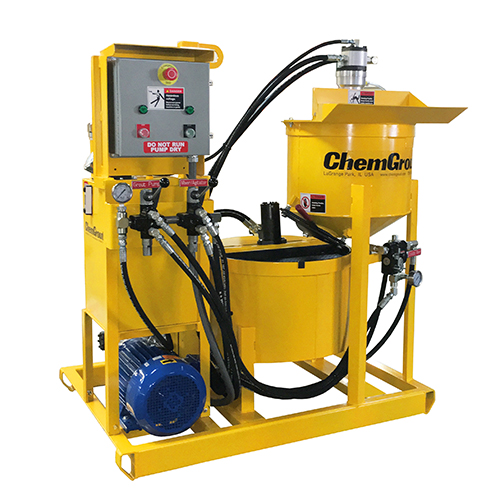

CG-450 High–Shear Colloidal Series

-Specially designed, skid or wheel mounted, high shear colloidal injection systems designed for vacuum grouting of post tensioned cables ducts or small injection projects.

-These units are designed to inject PT Cable grouts for small tendons or voids. Materials include Sika 300 PT, MBT 1205 and a wide variety of other PT grouts.

-Features a 20-gallon (76 liters) high shear colloidal mixing tank equipped with a baffle, a variable speed high-shear impeller and a 34 gal (128 liter) agitator tank

-The injection pump is a variable speed, positive displacement, progressing cavity pump that delivers up to 6 gpm, 174 psi (22 lpm, 12 bar).

-Rugged steel frame, complete with caster type wheel stands up to the toughest conditions on the job site.

-All moving parts are covered for safety.

-Operator controls are centrally located for efficient production.
